FTTH SOLUTION

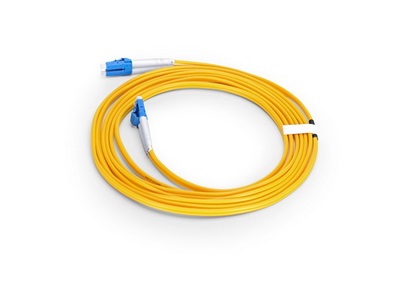

Patch cord & Pigtail

Fiber optic patch cord, sometimes also called fiber optic jumper or fiber optic patch cables. It is one of the most commonly used components in fiber optic network. It can make a connection between a Network interface, or NETWORK port, and a media segment, or to directly connect stations and Hubports together. Generally there are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic cable core. Usually single mode fiber optic patch cord are with 9/125 fiber glass and with yellow jacket color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and with orange color. Distinguish by external shape, there have simplex, duplex, multi, ribbon fan out and bundle fiber optic cable assemblies. Typical fiber optic patch cord cable diameter can be 0.9mm, 2mm,or 3mm. Our factory supply SC, FC, ST, LC, MTRJ, E2000, MU, MPO, MTP fiber optic patch cords, all of them were used in highest quality fiber ferrule, not the recycle fiber ferrule, it guarantees a good insertion loss and return loss. In Nexivox, you can custom different length, use Corning, YOFC or other types fiber cable, use the PVC or LZSH jacket, and no MOQ. And we also accept OEM order, as a leader of China fiber optic patch cord manufacturer, we are happy and we have experience to help you elevate your brand influence, package the goods with your style.

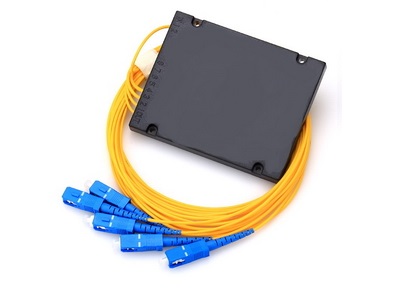

PLC Splitter

Planar lightwave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON(EPON/GPON) networks to realize optical signal power splitting. Optical PLC Splitter is one of the key components in FTTH, it’s typical parameter include input and output part cable length, connector type, light splitting ratio and package style. Just like fiber optic patch cable, PLC splitters are usually with 0.9mm, 2mm or 3mm cables. 0.9mm outer diameter cable is mostly used in blockless/steel tube package fiber optic PLC splitters, while 2mm and 3mm cables are mostly used in box type package fiber splitters. Usually, PLC splitter is use G657A1 fiber, typical connectors installed on the fiber optic splitters are SC/UPC, SC/APC, LC/UPC, LC/APC or FC/PC type. Nexivox as the China leading Fiber Optic PLC Splitter manufacturer, provides whole series of 1xN (1×2, 1×4, 1×8, 1×16,1×32, 1×64) and 2xN (2×2, 2×4, 2×8, 2×16, 2×32,2×64) splitter products that are tailored for specific applications. All meet Telecordia GR-1221/1209 standard, 100% test insertion loss, return loss and pass Temperature & Humidity aging test.

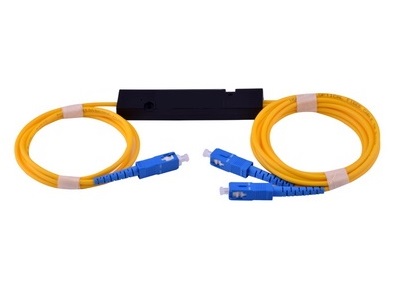

FBT Coupler

Nexivox Fused fiber optic coupler (FBT Coupler) is designed for power splitting and tapping telecommunication equipment, CATV networks, and test equipment. This kind of small components are available individually or integrated into modules for fiber protection switching, MUX/DMUX, optical channel monitoring, and add/drop multiplexing applications. Our fused WDM is also based on Fused Biconical Taper (FBT) technology, it is used to combine and separate optical signals transmitted on different wavelengths. Compare to the filter type WDM(FWDM device), fused WDM offers low insertion lose and much lower price and it is widely used in optical transmission network and network status monitoring. We offers complete and flexible solutions for fused fiber optic coupler (FBT Coupler) and Fused WDM applications.Due to our standard small packages(3.0x54mm), it is ideal to be used in compact equipments or solutions.

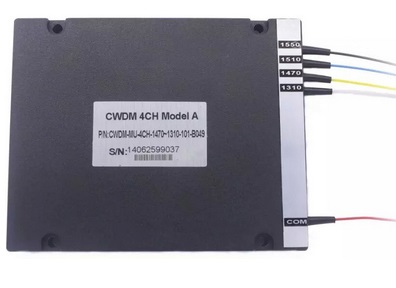

CWDM Mux/Demux

Coarse wavelength division multiplexing (CWDM) is a method of combining multiple signals on laser beams at various wavelengths for transmission along fiber optic cables, such that the number of channels is fewer than in dense wavelength division multiplexing (DWDM) but more than in standard wavelength division multiplexing (WDM). CWDM systems have channels at wavelengths spaced 20 nanometers (nm) apart. This allows the use of low-cost, uncooled lasers for CWDM. In a typical CWDM system, laser emissions occur on eight channels at eight defined wavelengths: 1610 nm, 1590 nm, 1570 nm, 1550 nm, 1530 nm, 1510 nm, 1490 nm, and 1470 nm. But up to 18 different channels are allowed, with wavelengths ranging down to 1270 nm. Nexivox’s Coarse wavelength division multiplexer (CWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path. We offers a full range of CWDM Mux/Demux devices to suit all kinds applications and network solutions. Some most common ones are: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. Our CWDM Mux Demux products provide up to 16-channel or even 18-channel Multiplexing on a single fiber. Due the the low insertion loss is needed in WDM networks, we can also add “Skip Component” in a CWDM Mux/Demux module to reduce the IL as an option. Standard CWDM Mux/Demux package type include: ABS box package, LGX pakcage and 19” 1U rackmount.

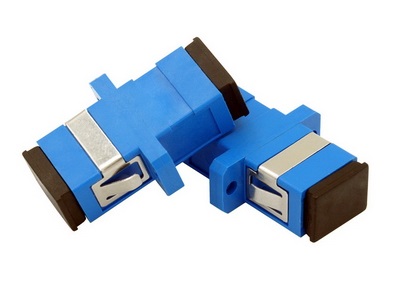

Adaptor & Attenuator

Fiber optic adapter is also called fiber optic coupler. It is used to provide a cable to cable fiber connection. People sometimes also name them to be mating sleeves and hybrid adaptors. Mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adaptors are the fiber optic cable adaptor types used to connect different kinds of fiber optic connectors. Fiber optic adapter is used in interconnecting of two connectors so that it is widely applied in optical fiber management system, optical testing project and etc. Nexivox provides a complete line of passive fiber optic adapters for both singlemode and multimode applications, like ST, SC, FC, LC, MTRJ, MPO and MU style fiber optic adapters. We also can offer fiber adapter plates for ST-, SC-, MT-RJ- or LC-type connections. All of our fiber optic adapters are made of new material science, they have a highly-quality.

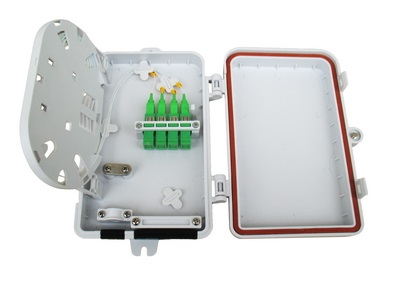

Fiber Distribution Box

FTTH Fiber Distribution Box is available for the distribution and terminal connection for various kinds of optical fiber system, it is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH. Widely used in the end termination of residential buildings and villas, to fix and splice with pigtails. Can be installed on the wall. May adapt variety of optical connection styles. Optical fiber can be managed effectively. Available for PLC Splitter. Nexivox offers 2 ports, 4 ports, 6 ports, 8 ports,16 ports, 24 port, and 32 ports fiber distribution box, they are made of PC/ABS allo.

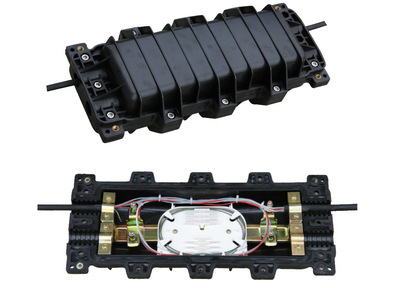

Fiber Joint Closure

Fiber Optic Splice Closure is a device used to offer spaces to fuse optical fiber as well as to provide protections to the fused fiber joint point and the fiber optic cables. It protects fiber optic splice while providing fast and easy no cost reentry. Inside the closure there are fiber splice trays. Optical fibers are fused and put inside the fiber splice tray for protection. Then the closure itself provides further protection. The fiber optic splice closure is installed on wires, in manholes, in ducts, and mounted on poles. It provides reliable sealing performance and fiber splices are enclosed in a ribbed polypropylene body that has high mechanical and environmental specifications. There are various kinds of fiber splice closures suit for different applications. They are used with aerial fiber optic cables, duct fiber optic cables and direct buried fiber optic cables. Generally, fiber optic splice closures are used outdoors, some even used underwater. Typical fiber optic splice closures include dome type and horizontal type.

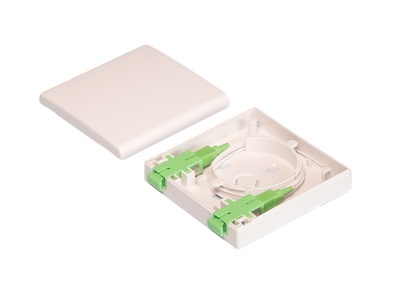

Socket Panel

Nexivox's Socket panel series are used in the end termination of residential buildings and villas,to fix and splice with pigtails;Can be installed on the wall; May adapt variety of optical connection styles; Optical fiber can be managed effectively.

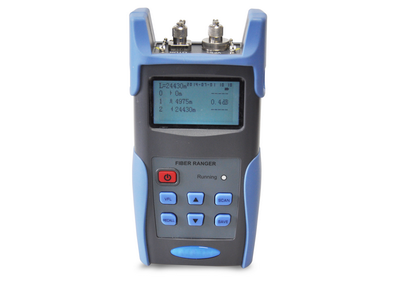

OTDR

This series handheld optical time domain reflectometer (OTDR) is a new generation of intelligent optical measuring instrument designed for the optical fiber Technology Co., Ltd.. This product is mainly used to measure the parameters of optical fibers and cables, communication system testing by zhe Electronics such as length, loss, and connection quality, etc.; it can realize the accurate positioning of event points and optical fiber communication systems as well as the research, production and production measurement of optical fibers and cables and so on. This product can provide you with the highest performance of solutions fault points, and can be widely used in the construction, maintenance testing and emergency repair of the for installation and construction of fiber optic network construction and the subsequent fast and efficient maintenance and troubleshooting testing.

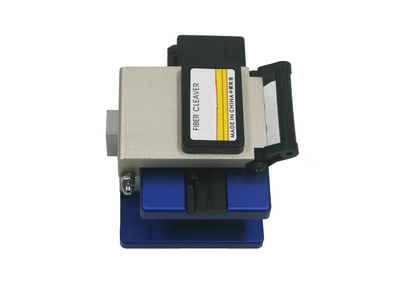

Fiber Cleaver

Very sharp blade, easy to cut Easy to carry. Protection-type pen loops, to ensure the heads will not accidentally damaged, even in the non-cap of a pen,also anti-wrestling.

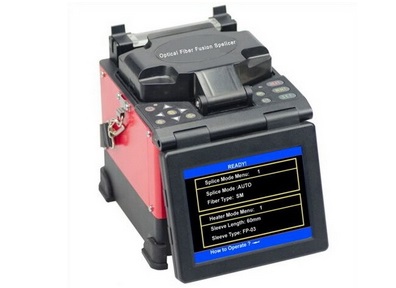

Fusion Splicer

5 inches high Resolution colorful LCD display, Average splice time: 10 second, Average tube-heat time: 30 second Lithium battery: up to 180 times of continuous splice and heat Simultaneous X and Y views with 180 times magnification New developed technology providing wind and dust resistance Splicing mode：Auto & Manual & Full-Automation USB Port, Storing 6,000 groups of splice results. Multipurpose optical fiber fixture (Such as: Rubber-insulated wire, fiber optic patch cord, bare fiber)

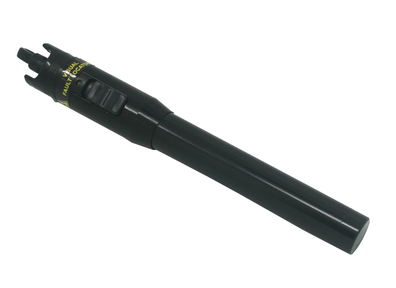

Fault Location Pen

2.5mm universal connectoroperates either in CW or Pulsed Constant output power Lower Battery warning Long battery life (up to 60 hours) Crash-proof and dust-proof design for laser head Laser case ground design prevents ESD damage Burning testing to ensure the reliability. Portable and rugged, easy to use Guarantee to CE standards include EMC, EMI, ROHS

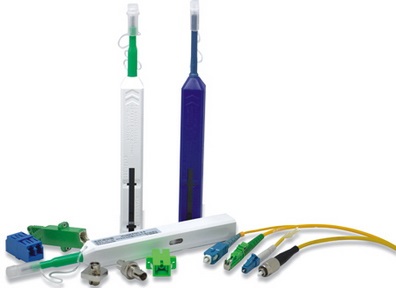

Optic Fiber Cleaner Pen

Easy pushing motion engages connector and initiates cleaner Disposable with 800+ cleanings per unit Made from anti static resin Cleaning micro fibers are densely standed and debris free Extendable tip reaches recessed connectors Cleaning system rotates 180 for a full seeep Audible click when engaged

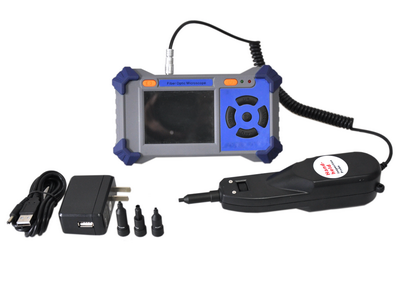

Fiber Optic Connector Inspection

3.5-inch TFT color display, Well-centered, high resolution image, Image capture and storage, Instant video recording, 250x Magnification, 4x Digital zoom, Standard tips (SC, FC, ST, LC, MU, E2000), USB plug-and-play.

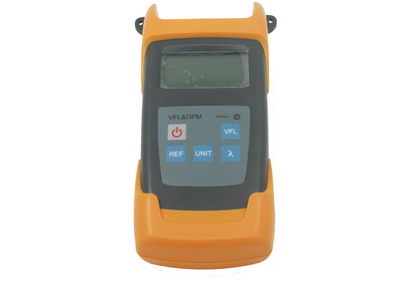

Optical Power Meter

Power meter and VFL integrated in one unit, this tester allows to perform both optical power/loss measurements and Fiber faults tracing visually.It has two ports,one is power meter,the other is VFL. Optical Power Meter is an ideal tester used in quickly mechanical splicing and FTTx networks. Optical Port: FC, SC, ST interchangeable supports various optical connectors.

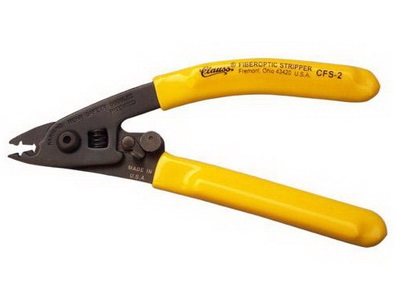

Miller Optical Fiber Plier

For stripping 250 micron buffer coating to expose 125 micron cladded fiber Second hole for stripping 2-3mm fiber jackets 140 μm diameter hole and V-opening in blade allows removal of 250 micron buffer coating from 125 micron fiber Pre-set at the factory - no adjustments needed Will not scratch or nick glass fiber All stripping surfaces are manufactured to precise tolerances to assure clean, smooth strips Comfort-grip, ergonomic handles Lock to hold tool closed when it is not in use.

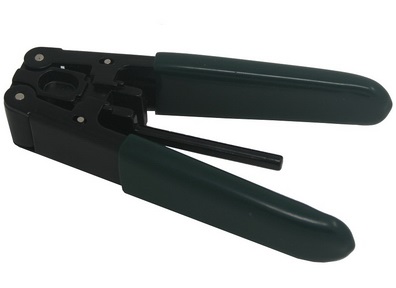

Wire Stripper

For seating Telecom and data cables into terminals Suitable for a wide range of terminal blocks, including KRONE and similar Cable locking, insertion blades and cable shears included Driving parts adopt excellent chisel tool steel ,The head of punch tools which is made of special material makes punch tools more durable. Punch Tool bit and spring made of excellent metal strip and spring steel Life: no less than 10,000 times Working strength: 130N.
